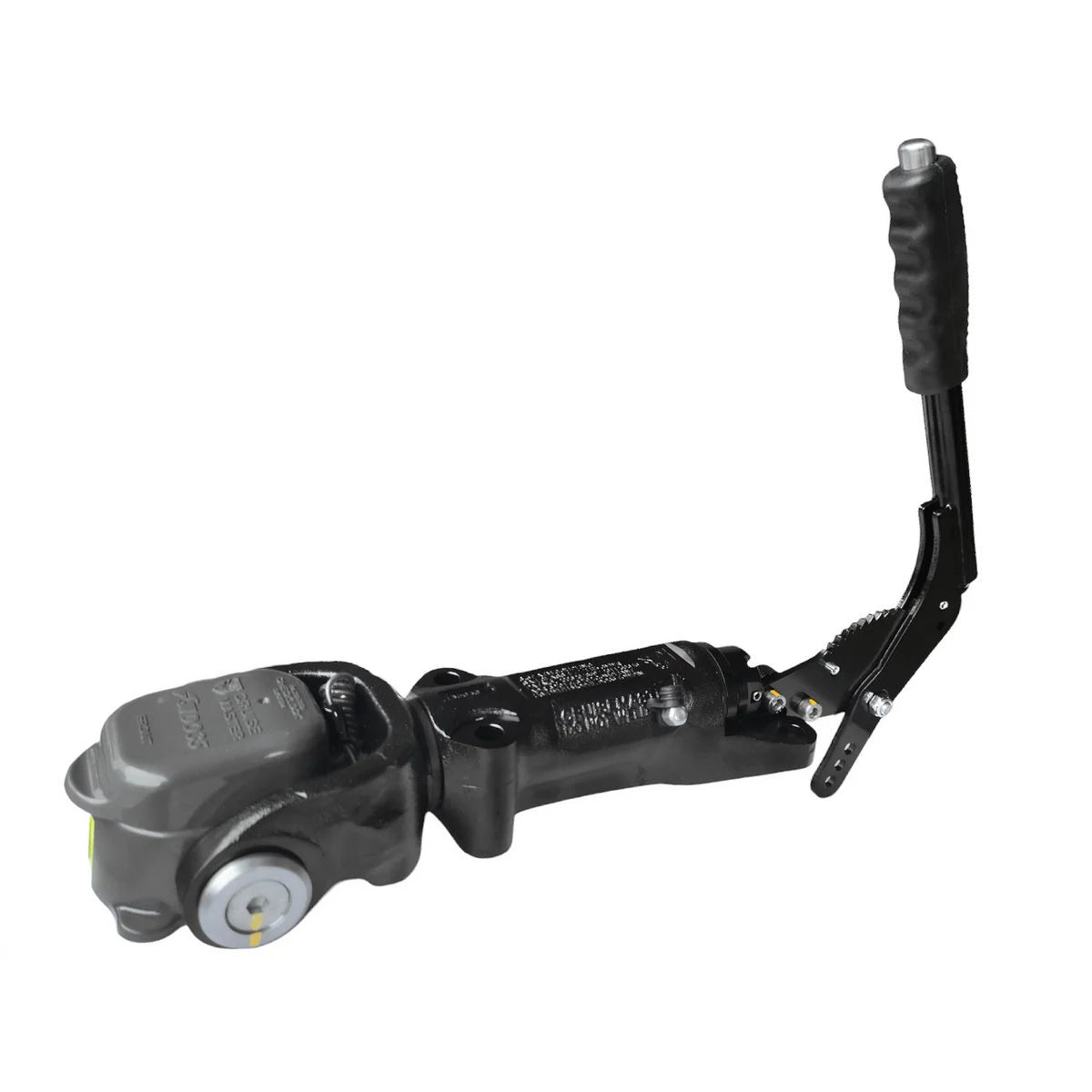

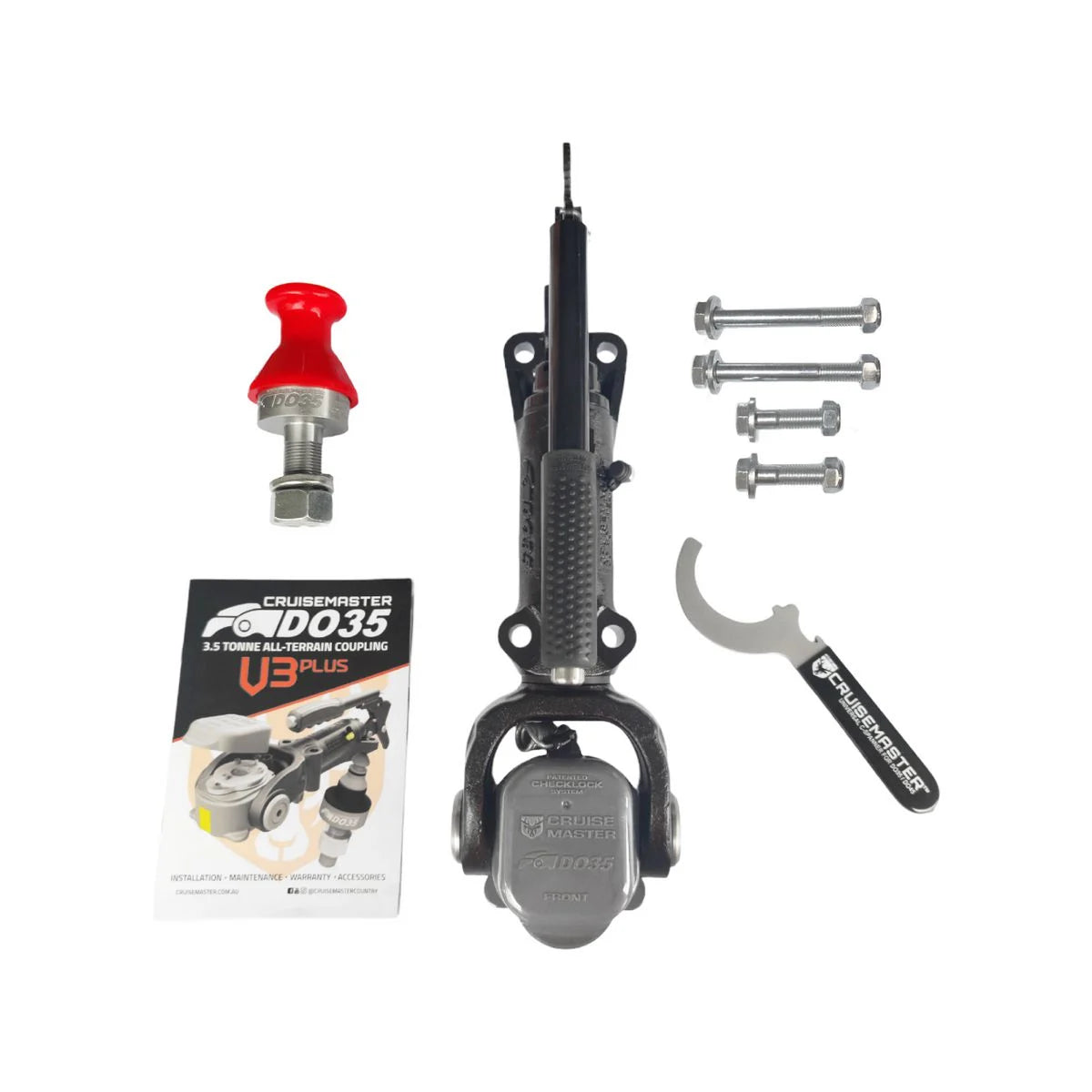

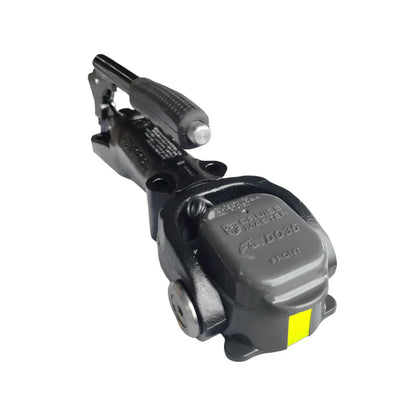

Cruisemaster DO35 V3Plus Coupling Kit with Handbrake - 1 Inch Tow Pin

DO35 V3Plus – Take Your Adventures Further

The DO35 V3Plus is the ultimate all-terrain coupling, engineered to exceed expectations on the road, dirt, and everywhere in between. It’s built for strength, safety, and versatility—so you can tow confidently, no matter where your journey takes you.

---

V3Plus Exclusive Features

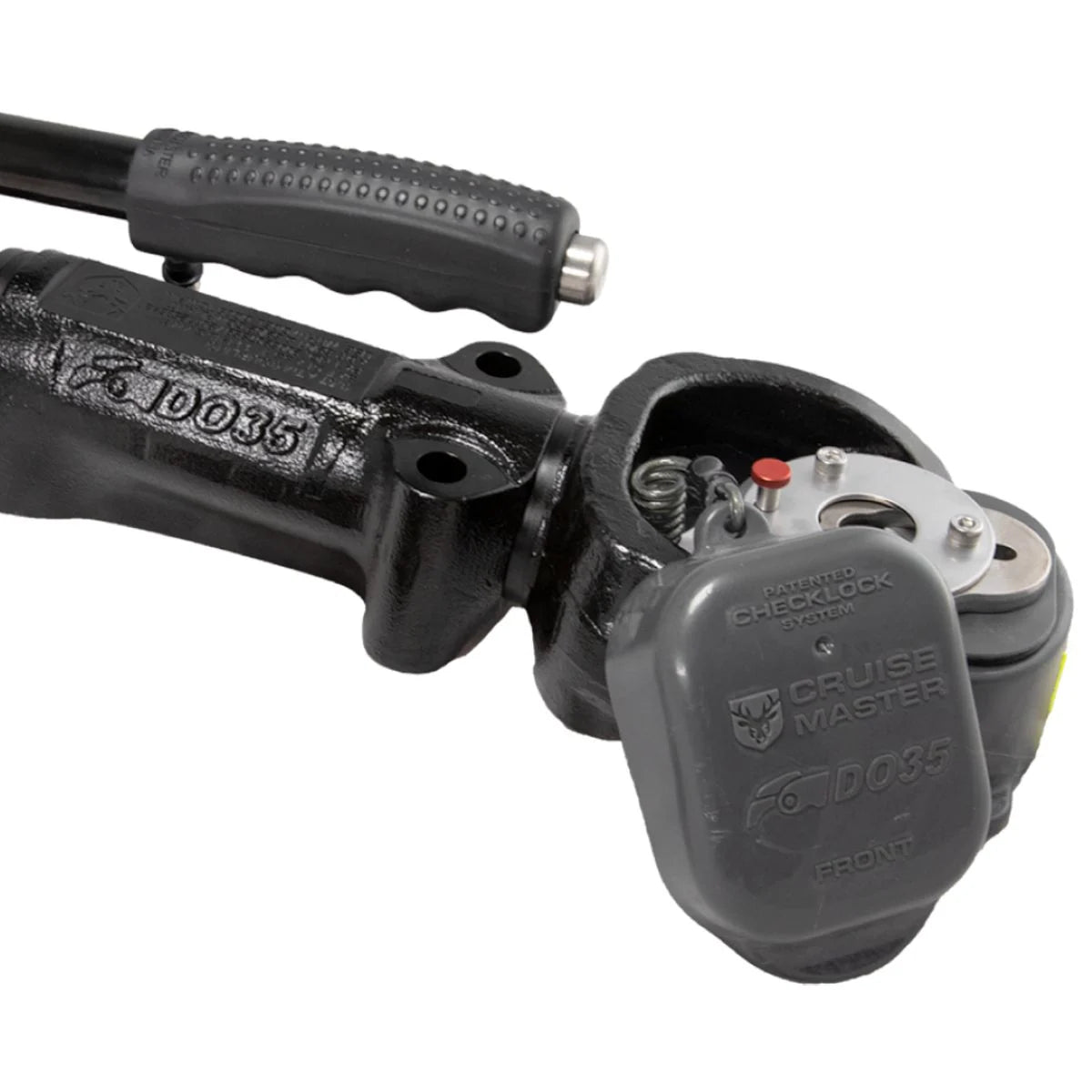

• Patented “Checklock” Gen 2 Dust Cap & Bumper – A foolproof design: the cap only fits when the lock is engaged, ensuring both protection and confirmation of a secure connection.
• Reinforced Bumper Molding – Holds reflector strips in place, preserving visibility and durability.
• Rear Support Webbing – Enables upside-down mounting beneath the drawbar for flexible installation.

---

Core V3 Features

• 2‑Stage ADR Compliant Locking – Positive, secure locking mechanism provides peace of mind.
• Low-Profile Cap & Bumper – Designed for ample clearance around rear doors and grab handles.
• High Articulation (360° axial, ≥70° others) – Excellent maneuverability off-road and via uneven terrain.
• Available with or without Handbrake – Tailor it to your specific towing setup.
• Compatible with Most Weight Distribution Systems (WDH) – Tested with popular models; adaptors available for others.
• Forged Yoke & Rear Nut – Provides critical reinforcement under stress.
• Exceeds ADR 62/01 & 62/02 Strength Standards – Rigorously tested for superior performance.
• One-Piece Lightweight Cast Housing – Keeps weight down without sacrificing strength.
• Standard Australian 4-Bolt Pattern – Easy installation and retrofit.
• 1″ - 25.4mm shaft – Compatible with most standard tow tongues.
• Superior Corrosion Protection – Zinc-nickel plating plus E-coat finish; UV exposure may fade finish, but not functionality.
• Greaseable Bushes – Reduced wear, noise, and maintenance, even in extreme conditions.
• No Tow‑Ball Height Restrictions – Offers maximum rig configuration flexibility.
• R.A.T Tested & Proven – Real-world remote area running verifies reliability.

---

Performance Benefits

• Exceptional Safety – Articulated design reduces the risk of disconnect or rollover in accidents; it’s more reliable than many standard couplings.
• Off‑Road Durability – Built to endure rough terrain and long-distance corrugation driving—poly bushes, grease points, and robust materials stand up to the Southern Hemisphere’s toughest trails.
• Simplified Towing – Drop-on pin system and visual port make hitching easier in uneven or unlit areas.
• Clear Status Visibility – Checklock cap visually confirms locking, boosting safety checks during coupling.

---

Technical Snapshot

Spec	Details
Towing Capacity	3.5 tonne (3,500 kg)
Articulation	360° axial / ≥70° vertical & horizontal
Bolt Pattern	Standard Aus 4-bolt (185 × 54 mm)
Rating	ADR 62/01 & 62/02 compliant, 3.5 T
Locking	2‑stage ADR compliant with auto secondary lock
Maintenance	Fully greaseable

---

The DO35 V3Plus isn’t just a coupling—it’s a tool for adventure, tested in remote areas to ensure resilience, reliability, and user-friendly operation. With a combination of intelligent design and rugged engineering, this coupling takes you further—and safer—than others.
